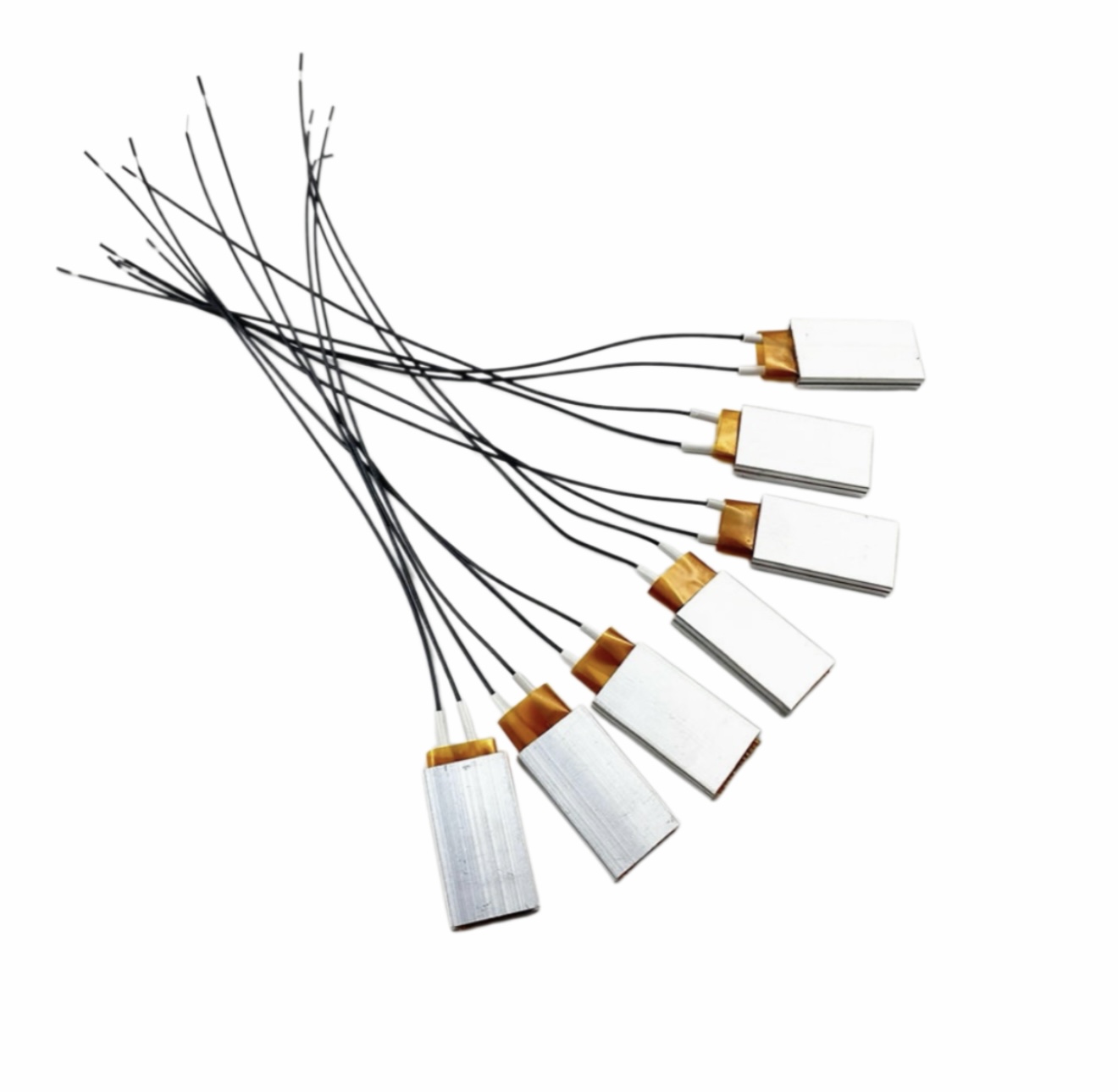

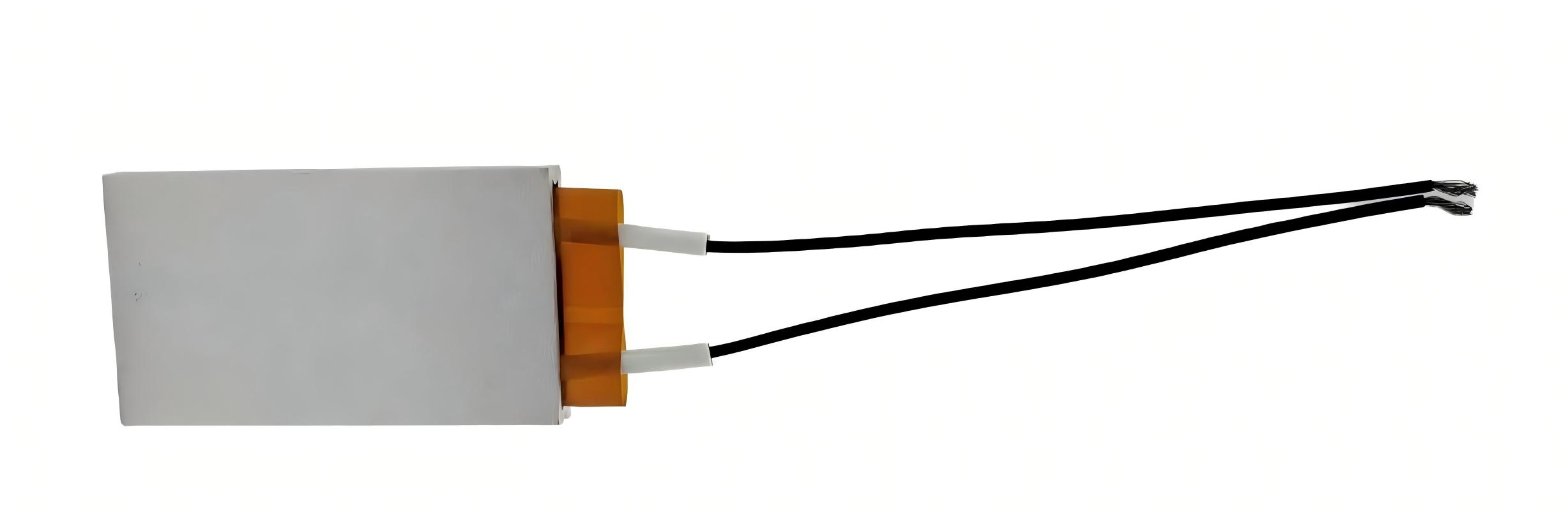

Self-Regulating PTC Heater with Aluminum Shell

Temperature control is critical in many industrial and electronic systems. Traditional resistance heaters often require thermostats or control circuits to prevent overheating, increasing system complexity.

A Self-Regulating PTC Heater with Aluminum Shell offers a simpler and more reliable solution. By combining PTC ceramic heating technology with an aluminum housing, it provides automatic temperature regulation, efficient heat transfer, and long-term reliability.

In addition, the heater's dimensions, operating voltage, and self-regulating temperature can all be customized to meet specific application requirements.

What Is a Self-Regulating PTC Heater?

PTC stands for Positive Temperature Coefficient, a type of ceramic material whose resistance increases sharply when it reaches a predetermined temperature.

Unlike conventional heating elements, a PTC heater automatically adjusts its power output according to temperature:

●  Low resistance at startup provides rapid heating.

●  Resistance increases as temperature rises.

●  Current and power consumption decrease automatically.

●  The heater stabilizes near its designed temperature.

This self-regulating characteristic helps prevent overheating and improves operational safety.

Why Use an Aluminum Shell?

The aluminum housing not only protects the PTC element but also improves overall heating performance.

Excellent Heat Transfer

Aluminum's high thermal conductivity allows heat to spread evenly across the surface, resulting in:

●  Faster heat distribution

●  Improved heating efficiency

●  More uniform surface temperatures

Mechanical Protection

The aluminum enclosure protects the internal heating element from vibration, impact, and environmental exposure, helping extend service life.

Compact Structure

Its simple and compact design makes the heater easy to integrate into a wide variety of equipment and thermal management systems.

What Are the Key Features?

1. Self-Regulating Temperature Control

The heater automatically limits its temperature without requiring complex control systems, reducing design complexity and improving safety.

2. Fast Heating Response

Low initial resistance enables rapid heat generation and quick warm-up.

3. Energy-Efficient Operation

As the heater approaches its target temperature, power consumption automatically decreases, helping improve energy efficiency.

4. Reliable and Maintenance-Free

PTC ceramic elements contain no moving parts and provide stable long-term performance.

5. Flexible Customization

To meet different project requirements, the following parameters can be customized:

Actual specifications can be customized according to application requirements.

Self-Regulating PTC Heaters with Aluminum Shells provide a reliable, safe, and energy-efficient heating solution for a wide range of industrial and electronic applications. Their automatic temperature-limiting capability reduces the need for complex control systems while improving safety and operational stability.

With customizable sizes, voltages, and self-regulating temperature ratings, HRX PTC heaters can be tailored to meet the specific needs of different thermal management projects.
