Cartridge Heaters Complete Guide for Industrial Heating Applications

Cartridge heaters are high-efficiency electric heating elements designed for precision heating applications in industrial systems. With their compact cylindrical structure and high watt density capability, they are widely used in mold heating, packaging equipment, 3D printing systems, and various thermal processing machines.

Their key advantage is direct heat transfer into metal blocks, ensuring fast response time, stable temperature control, and high energy efficiency.

What Is a Cartridge Heater?

A cartridge heater is a tubular resistance heating element inserted into a drilled hole inside a metal component. It converts electrical energy into heat through a resistance wire embedded in magnesium oxide (MgO) insulation, ensuring efficient thermal conduction and electrical safety.

This design allows cartridge heaters to deliver localized, high-density heating in a compact structure.

Cartridge Heater Specifications (Custom Design Parameters)

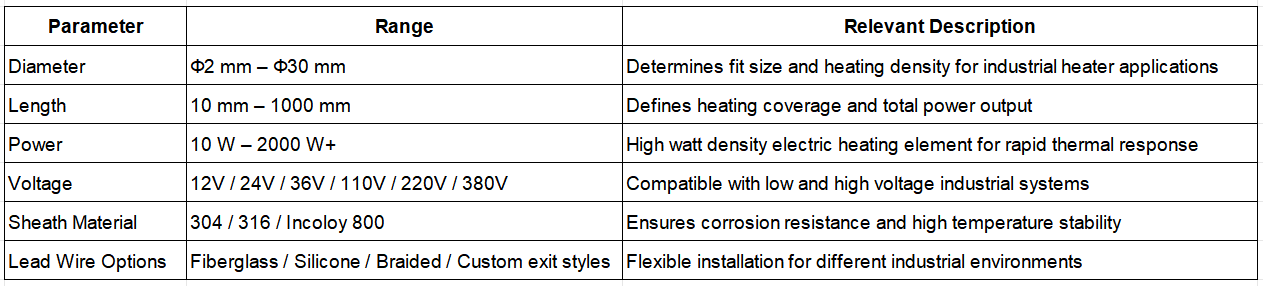

Cartridge heaters are fully customizable according to industrial requirements. The most important design parameters are summarized below:

Structure of a Cartridge Heating Element

A typical cartridge heater consists of:

●  Resistance wire (NiCr alloy) for heat generation

●  High-purity magnesium oxide (MgO) insulation for dielectric strength

●  Stainless steel or alloy sheath for durability and corrosion resistance

●  High-temperature lead wires for electrical connection

This structure ensures efficient heat transfer, long service life, and stable thermal performance in industrial environments.

Applications of Cartridge Heaters

Cartridge heaters are widely used across industries requiring precise thermal control:

●  Injection molding machines (hot runner systems, molds, nozzles)

●  Packaging machinery (sealing, cutting, heat pressing systems)

●  3D printing heated beds and extrusion systems

●  Medical and laboratory heating equipment

●  Die casting and metal forming machines

●  Semiconductor and automation equipment

Their ability to deliver localized and controlled heating makes them essential components in modern industrial heating systems.

Advantages of Cartridge Heaters

Cartridge heaters offer several key benefits compared to conventional heating methods:

●  High watt density for fast heating response

●  Compact design suitable for tight installation spaces

●  Direct heat transfer improves energy efficiency

●  Fully customizable for voltage, size, and power requirements

●  Reliable long-term operation in industrial environments

These advantages make them a preferred choice for industrial electric heating applications.

How to Select the Right Cartridge Heater

Selecting the correct cartridge heater depends on several engineering factors:

●  Hole diameter and mechanical fit tolerance for optimal heat transfer

●  Required operating temperature and watt density

●  System voltage compatibility (low-voltage or industrial AC)

●  Environmental conditions such as moisture, vibration, or corrosion

●  Lead wire configuration and installation constraints

A proper thermal fit between heater and metal block is critical to ensure performance and service life.

Cartridge heaters are one of the most efficient and flexible industrial electric heating elements, offering high watt density, compact structure, and full customization capabilities. They are widely used in mold heating, packaging systems, and precision industrial equipment where stable and localized heating is required.

With flexible options in diameter, length, voltage, power, and materials, cartridge heaters can be engineered to meet almost any industrial heating requirement.
