How Aluminium Foil Heaters Work and Where to Use Them?

In the world of industrial and commercial temperature management, finding a heating solution that is both highly effective and remarkably adaptable can be a challenge. Enter the Aluminium Foil Heater—a sophisticated yet simple technology that is revolutionizing how we apply gentle, uniform heat to protect equipment and ensure optimal performance. This blog dives deep into what these heaters are, how they work, their extensive applications, and why they might be the perfect solution for your needs.

What is an Aluminium Foil Heater?

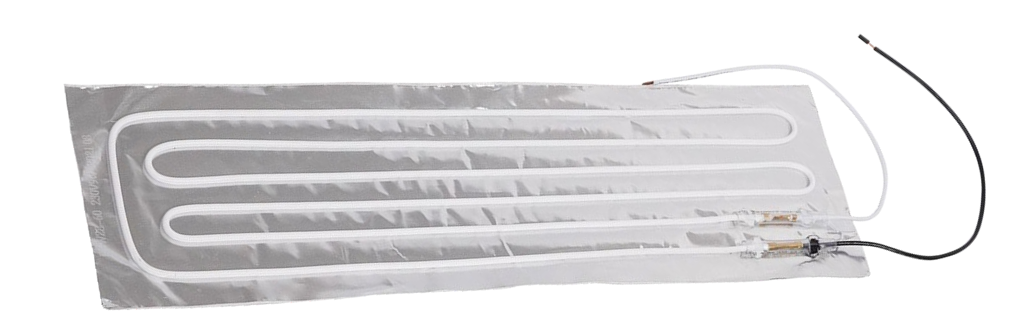

At its core, an aluminium foil heater is a flexible, thin heating element designed for surface heating. Its construction is elegantly simple: a silicon-insulated heating cable is precisely embedded or sandwiched between two durable layers of aluminum foil. This "sandwich" is then typically backed with a pressure-sensitive adhesive, creating a product that is essentially a "peel-and-stick" heating pad. The most user-friendly feature is its shearability—the material can be safely cut with scissors to fit complex shapes, contours, and sizes without compromising the heating circuit's functionality.

How It Works: Principles of Operation

The principle is straightforward. When powered, the resistive heating cable warms up. The aluminium foil plays two critical roles:

Superior Heat Spreading: Aluminum is an excellent thermal conductor. It evenly distributes the heat generated by the cable across its entire surface area, eliminating hot spots and ensuring uniform temperature distribution.

Robust Physical Protection: The foil layers protect the delicate heating cable from mechanical damage and environmental factors.

The adhesive backing ensures maximum thermal contact with the surface to be heated, optimizing heat transfer and efficiency.

Key Characteristics & Technical Specifications

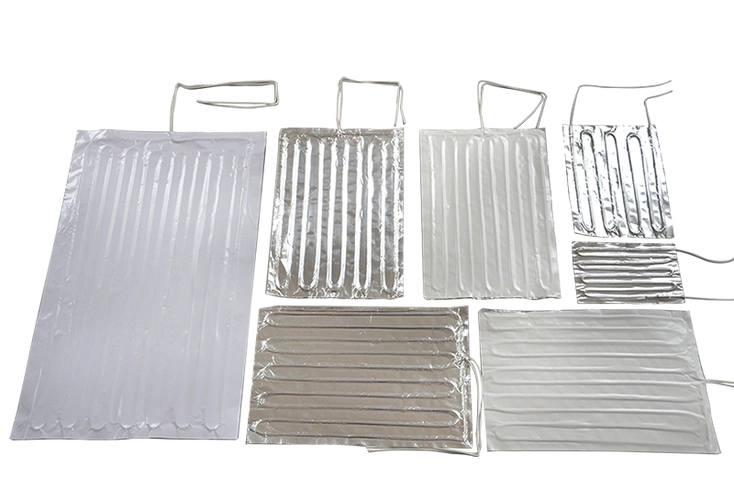

Flexible Dimensions: Available in standard widths (50mm to 400mm) and custom lengths to suit any project.

High Performance: Capable of achieving a maximum surface temperature of 110°C with a power output of up to 2.5 kW/m².

Electrical Versatility: Can be manufactured for any voltage upon request, making them suitable for global applications.

Safety & Reliability: Features excellent dielectric strength (2500V) and comes with options for Insulation Class II (double insulated) construction and earthing/grounding of the aluminum sheets for enhanced safety.

Precision: Output tolerance is kept within a tight ±10% range.

Expanded Applications: Where to Use Aluminium Foil Heaters

The versatility of these heaters makes them indispensable across numerous industries:

Industrial Process Maintenance: Preventing heat loss or protecting against freezing in pipes, valves, horizontal and vertical storage tanks, and IBC containers.

HVAC & Refrigeration: Freeze protection for plate heat exchangers, condensate pans, and hermetic compressor crankcase heating to prevent oil migration.

Commercial & Domestic Appliance Heating: Used in refrigerated display cabinets, medical storage units, food warmers, and appliance defrosting systems.

Electronics & Air Quality: Anti-condensation heating for electrical control cabinets, switchgear, and server racks to prevent short circuits. Also used in air ducts to control humidity and prevent condensation.

Specialty Applications: Anti-fogging for bathroom mirrors, floor warming under specific coverings, and localized heating in scientific or packaging equipment.

Advantages Over Traditional Heating Methods

Unmatched Flexibility: Can be conformed to curved, uneven, or irregular surfaces where rigid heaters fail.

Easy Installation: The adhesive backing and cut-to-fit capability drastically reduce installation time and complexity.

Energy Efficient: Uniform heat distribution and direct surface contact minimize wasted energy.

Lightweight & Low Profile: Adds minimal weight and bulk, ideal for applications where space is constrained.

Durability: The silicon rubber insulation and aluminum construction offer resistance to moisture, many chemicals, and physical wear.

Important Considerations & Options

To tailor the heater to your specific application, consider these available options:

Integrated Temperature Control: Adding a thermostat or thermistor (RTD) is crucial for energy-saving and precise temperature regulation, turning the heater on only when needed.

Safety Features: For applications in damp environments or as an extra precaution, specify Class II insulation and ensure the aluminum foil is earthed/grounded.

Customization: Manufacturers can often create pre-cut shapes, louvers, or holes to accommodate bolts, sensors, or other protrusions on your equipment.

The aluminium foil heater is a testament to how intelligent, simple design can solve complex thermal management problems. Its combination of flexibility, ease of use, efficiency, and reliability makes it a top choice for engineers and maintenance professionals across the globe. Whether you're battling freezing temperatures in an industrial plant, preventing condensation in a critical control panel, or simply keeping a bathroom mirror clear, this versatile technology offers a robust and adaptable solution.
